Product Detail

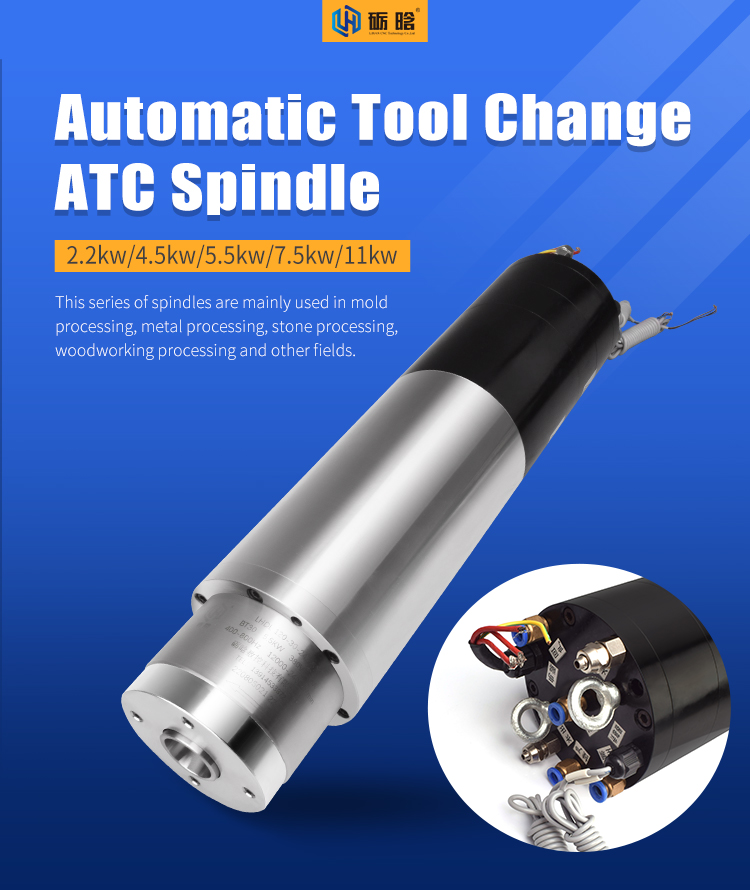

BT30 125mm atc spindle motor 5.5kw water cooled spindle 5.5 kw spindle motor for milling

Power：5.5kw

Voltage：380V

Connect：BT30

Speed：24000RPM

Frequency：400-800Hz

Collect

Paramenters
Description

Model	80-20-30Z/2.2	110-30-18Z/4.5	110-30-24Z/4.5	120-30-24Z/5.5	120-30-18Z/5.5	125-30-18Z/7.5	125-30-24Z/7.5	150-40-12Z/11	150-40-15Z/11
Power	2.2kw	4.5kw	4.5kw	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw
Spindle net weight	13kg	13kg	13kg	23kg	23kg	46kg	46kg	46kg	46kg
Spindle diameter	100mm	110mm	110mm	120mm	120mm	125mm	125mm	150mm	150mm
Tool handle model	ISO20	BT30	BT30	BT30	BT30	BT30	BT30	BT40	BT40
Current	8.9A	11A	11A	14.5A	14.5A	15.6A	15.6A	22A	22A
Voltage	220V	380V	380V	380V	380V	380V	380V	380V	380V
Frequency	1000Hz	600Hz	800Hz	800Hz	600Hz	900Hz	1200Hz	600Hz	750Hz
Rotating speed	30000 rpm	18000 rpm	24000 rpm	24000 rpm	18000 rpm	9000-18000 rpm	9000-24000 rpm	9000-12000 rpm	9000-15000 rpm
