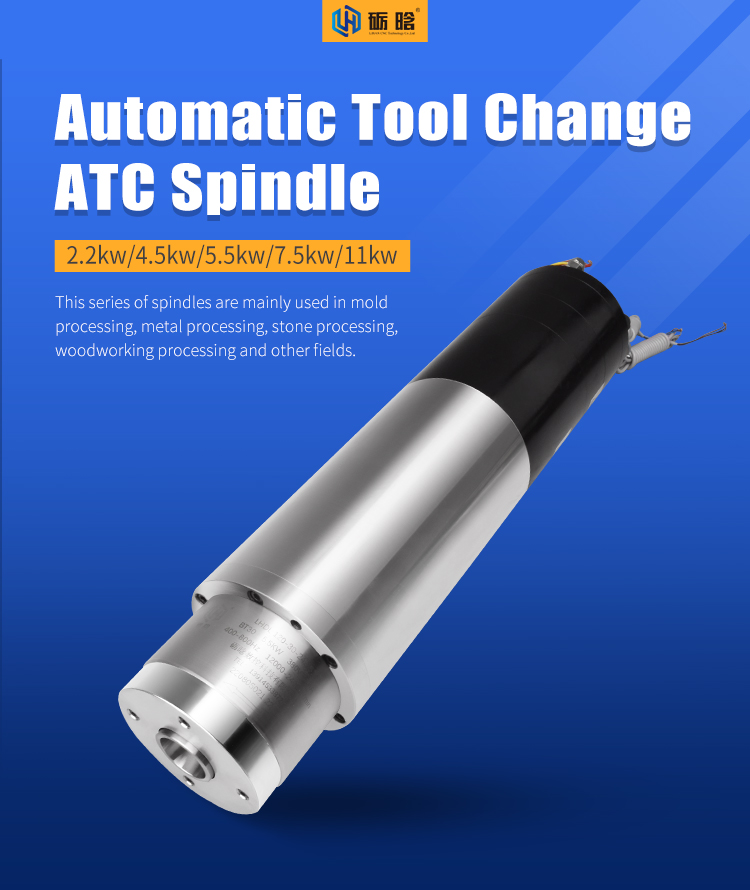

2.2/3/4.5/ 5.5/7.5kw 24000rpm bt30 water cooled cnc machine small automatic tool changer autochanger atc spindle motor

Product Paramenters:

Power:2.2/3/4.5/ 5.5/7.5kw

Spindle diameter: 100/110/120/125/150mm

Tool handle model: ISO20/BT30/BT40

Cooling type: Water cooling

Voltage: 380V/220V

Collect

Paramenters
Description

Model	80-20-30Z/2.2	110-30-18Z/4.5	110-30-24Z/4.5	120-30-24Z/5.5	120-30-18Z/5.5	125-30-18Z/7.5	125-30-24Z/7.5	150-40-12Z/11	150-40-15Z/11
Power	2.2kw	4.5kw	4.5kw	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw
Spindle net weight	13kg	13kg	13kg	23kg	23kg	46kg	46kg	46kg	46kg
Spindle diameter	100mm	110mm	110mm	120mm	120mm	125mm	125mm	150mm	150mm
Tool handle model	ISO20	BT30	BT30	BT30	BT30	BT30	BT30	BT40	BT40
Current	8.9A	11A	11A	14.5A	14.5A	15.6A	15.6A	22A	22A
Voltage	220V	380V	380V	380V	380V	380V	380V	380V	380V
Frequency	1000Hz	600Hz	800Hz	800Hz	600Hz	900Hz	1200Hz	600Hz	750Hz
Rotating speed	30000 rpm	18000 rpm	24000 rpm	24000 rpm	18000 rpm	9000-18000 rpm	9000-24000 rpm	9000-12000 rpm	9000-15000 rpm

Features:

This series of spindles are mainly used in mold processing, metal processing, stone processing, woodworking processing and other fields.
The spindle power covers2.2kw-11kw, with a maximum speed of 24,000 RPM.
This type spindle can be cooled by water or oil.
It is characterized by compact structure, light weight, low inertia, low vibration and low noise.
