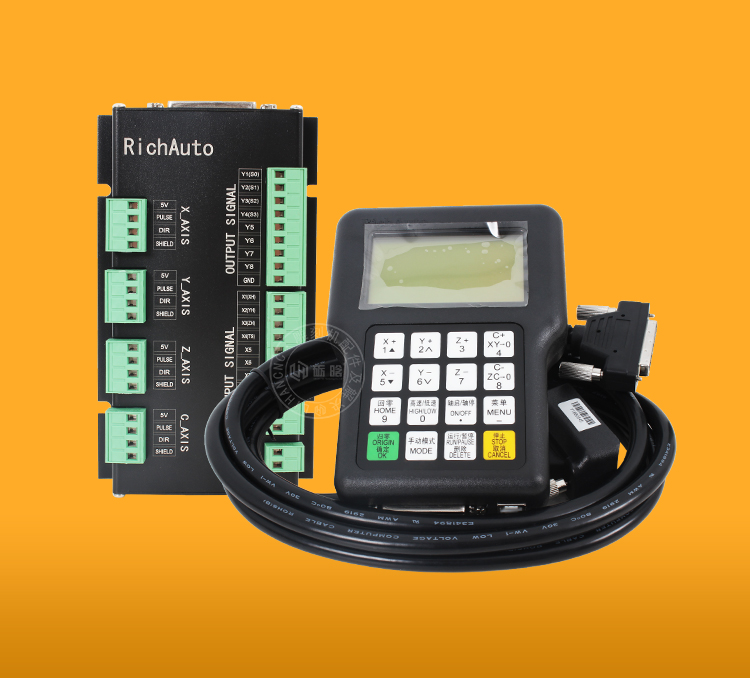

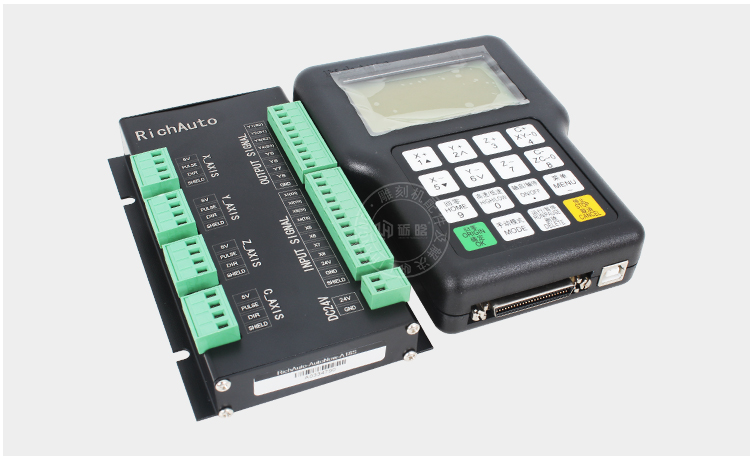

Richauto A11s A11 0501 0504 A15 A12S A18 rich auto dsp controller dsp controller dsp a11 hand

CPU：DSP

Internal Memory：512MB

Display Screen：128*64 Monochrome LCD

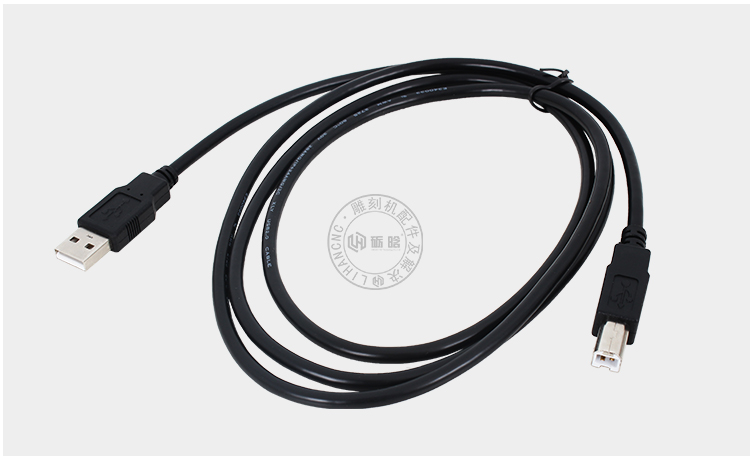

Communication Port：U disk / USB cable

Controlled Axis Number：3 axis

Collect

CPU	DSP
Internal Memory	512MB
Display Screen	128*64 Monochrome LCD
Communication Port	U disk / USB cable
Controlled Axis Number	3 axis
Control Signal	differential signal
Drive System	step motor/servo motor
Min.Input Unit	0.001mm
No Volt Protection	support
Breakpoint Processing Function	8
External Power Supply Voltage	24V DC
Manual Mode	Continuous/point move/distance
Interpolation Way	line/arc
Soft/Hard Limit	support
Max. Pulse Frequency	1M/S
Password Protection	support
Support Language	simple Chinese/traditional Chinese/English
Support Language	other languages
