Product Detail

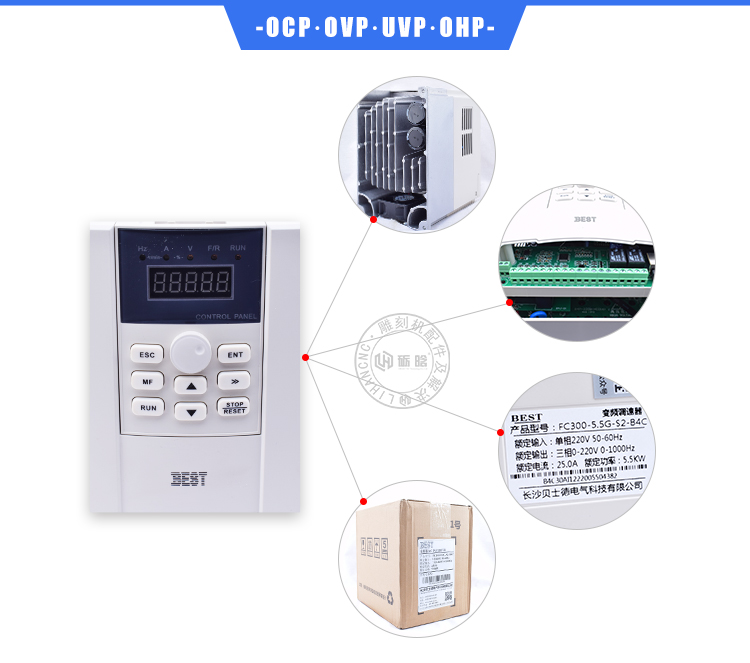

BEST 5.5kw Speed Control VFD 220v Single Phase Frequency Converter 3 Phase 380v VFD Inverter

Model：FC300-5.5G-T4-B4C

Rated input：3PH 380V 50-60Hz

Rated output：3PH 0-380V 0-1000Hz

Rated current：13A

Rated power：5.5kw

Collect

Paramenters
Description

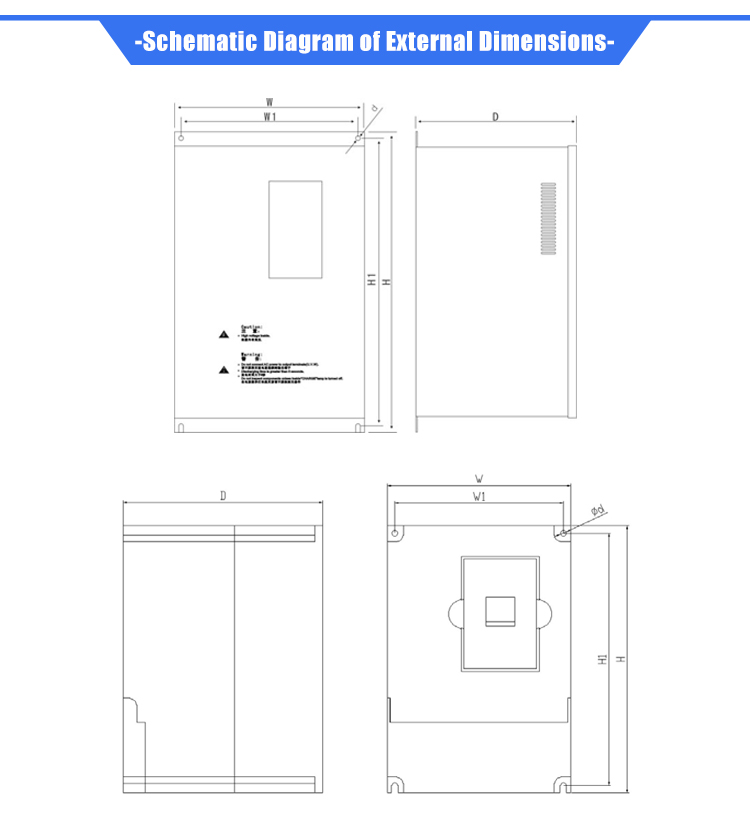

Model	installation dimension			Outline Dimension
	W(mm)	H(mm)	D(mm)	W1(mm)	H1(mm)	d(mm)
FC300-0.75T2	100	180	157	87.5	170	4.5
FC300-1.5T2
FC300-0.75T4
FC300-1.5T4
FC300-2.2T4
FC300-2.2T2	135	240	170	125	230	4.5
FC300-3.0T2
FC300-3.0T4
FC30-3.7T4
FC30-5.5T4
FC300-7.5T4	212	340	195	202	320	6.5
FC300-11T4
FC300-15T4	267	422	225	250	405	6.5
FC300-18.5T4
