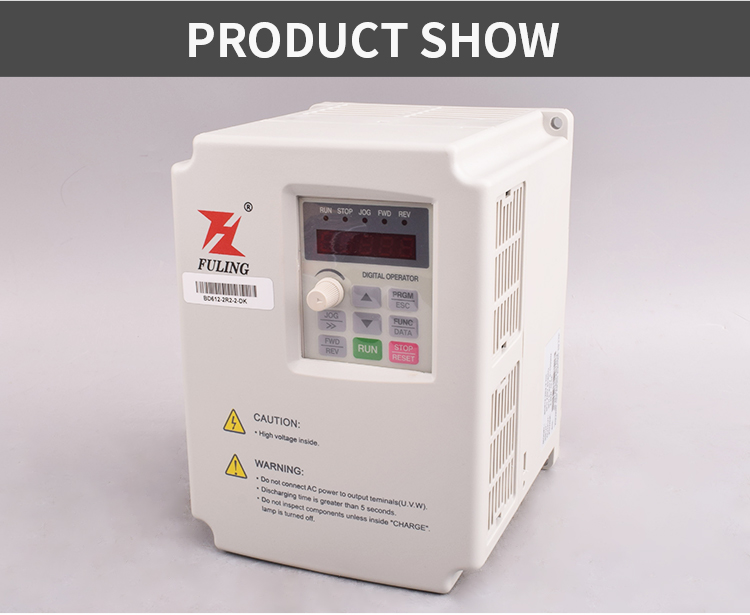

BD612 series 2.2kw 3hp vfd inverter 220v 1 to 3 phase 220 v frequency inverters

Model：BD612-2R2-2-DK

Input：3PH 220V 50/60Hz

Output：3PH 0~220V 0~1000Hz

Rated current：10A

Rated power：2.2kw

Collect

Paramenters
Description

Model	Power	A	B	H	W	D	d
FL22	BD612-1R5-2-DK	1.5	100mm	141mm	151mm	89mm	117mm	5mm
FL28	BD612-2R2-2-DK	2.2	125mm	159mm	170mm	113mm	142mm	5mm
	BD612-1R5-4-DK	1.5
	BD612-2R2-4-DK	2.2
FL40	BD612-3R7-2-DK	3.7	154mm	238mm	250mm	142mm	155mm	5mm
	BD612-5R5-2-DK	5.5
	BD612-7R5-2-DK	7.5
	BD612-3R7-2-DK	3.7
	BD612-5R5-4-DK	5.5
	BD612-7R5-4-DK	7.5
FL75	BD612-011-2-DK	11	205mm	300mm	322mm	190mm	193mm	6.5mm
	BD612-015-2-DK	15
	BD612-011-4-DK	11
	BD612-015-4-DK	15
	BD612-018-4-DK	18.5
