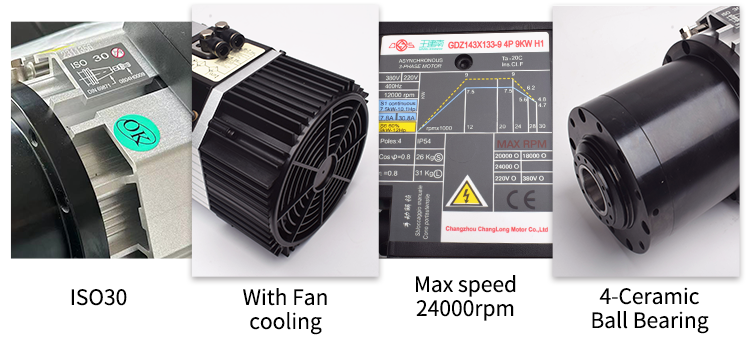

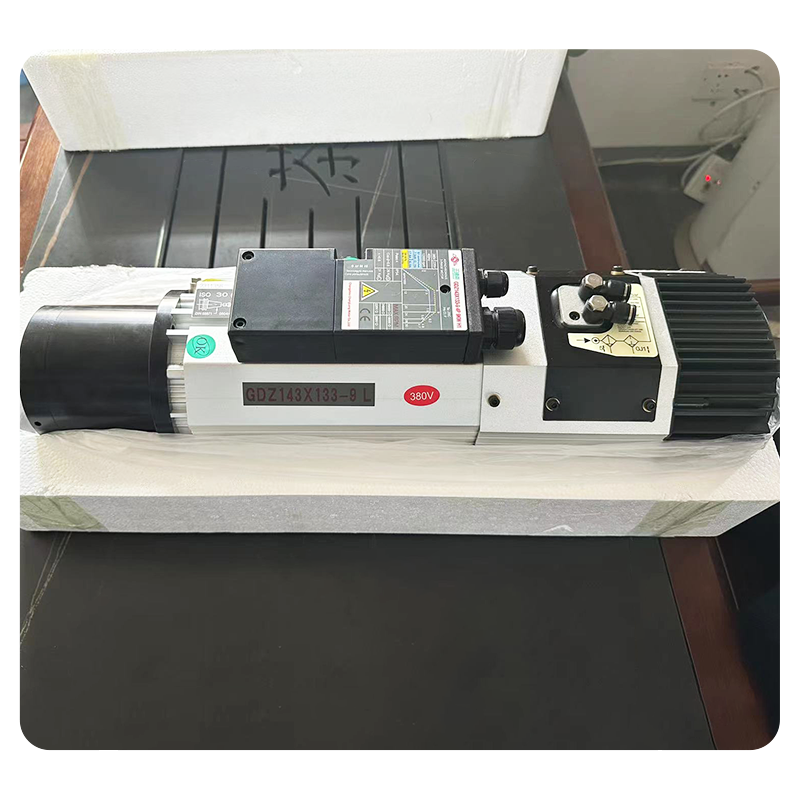

gdz cnc atc spindle 9kw air bearing 9 kw spindle bt30 ISO30 atc spindle

Power：9kw

Voltage：220V/380V

Connect：BT30/ISO30

Speed：12000-24000RPM

Frequency：400-800Hz


Collect
  • Paramenters
  • Description
Type

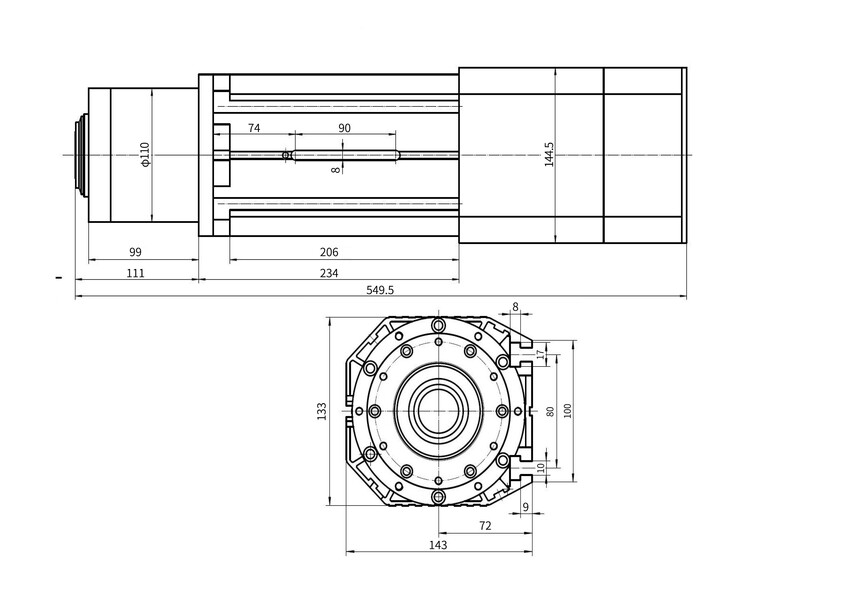

GDZ143x133-9L
Power
9kw
Bearings amount
4
Diameter
143x133
Voltage
220V
380V
Current
30.8A
17.8A
Collet/nut
BT30/ISO30
Frequency
400-800Hz
Speed
12000-24000rpm
Cooling type
air cooling
