6000rpm 90mm bt30 cylinder milling belt drive cnc router atc spindle motorProduct Paramenters: Model: BT30 Rated speed: 6000rpm Diameter: 90mm Length: 285mm Drive: Belt Drive Bearing type: 7008C/P4*4 Cooling type: Water Voltage: 380V/220V
Collect

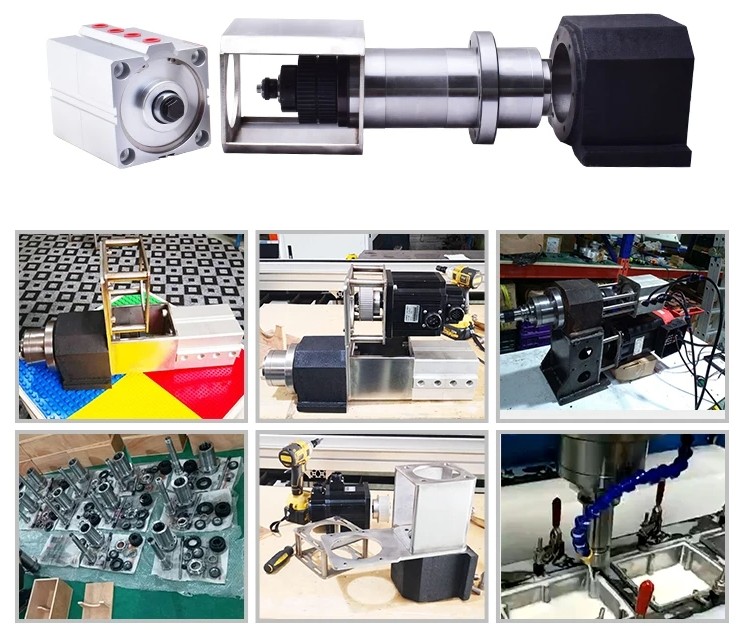

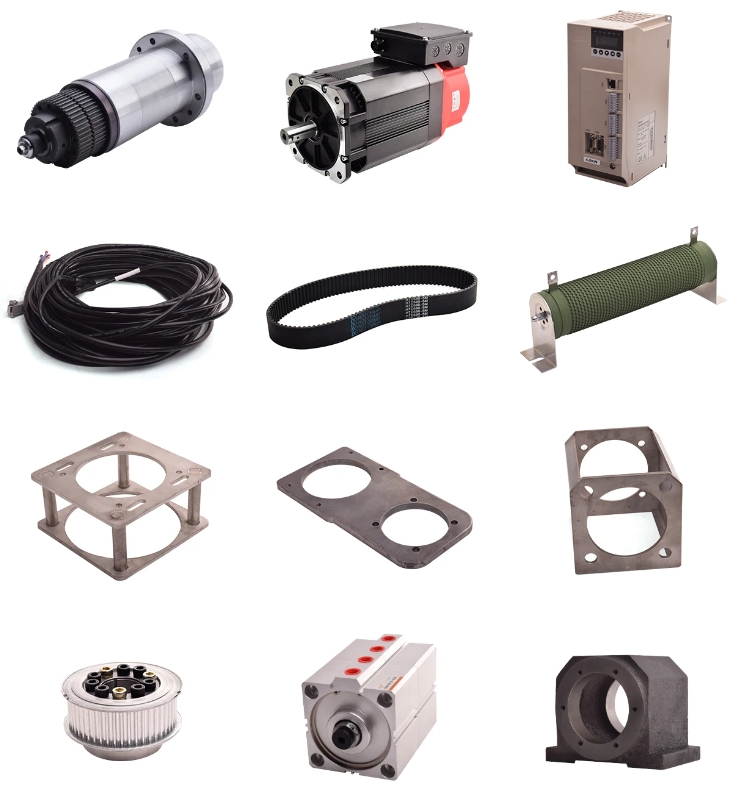

Whole set is including main spindle, bracket, pneumatic cylinder, motor, driver and tool holder. Spindle is driven by belt. 90/100/120mm diameter and different RPM can meet different customer’s demands. It is a very important parts in Machining Center Series, mainly applied for all kinds of high speed CNC machine, suitable for processing of large mould, automobile parts and aerospace parts.
