Product Detail

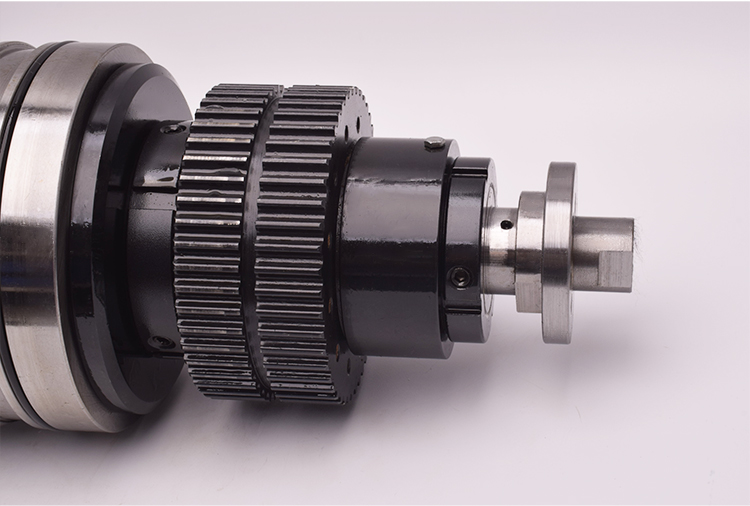

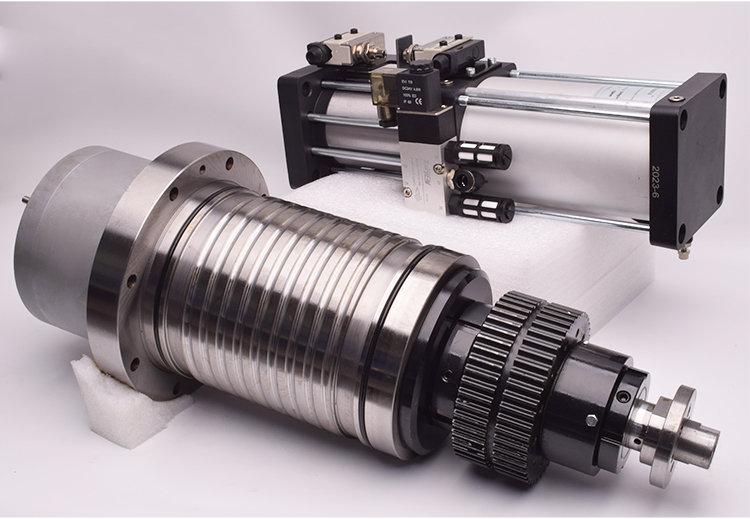

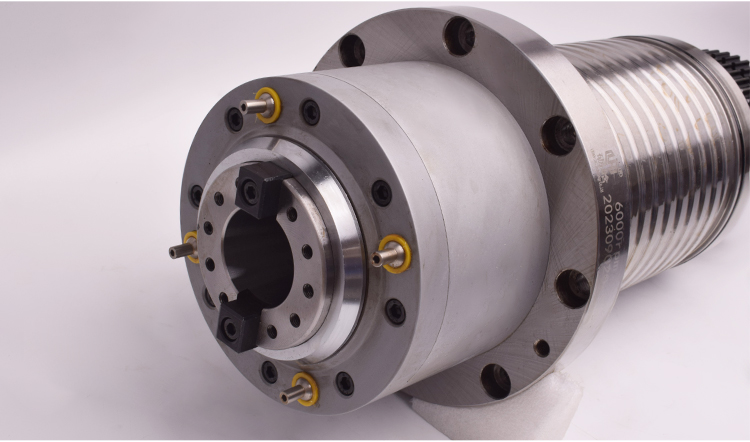

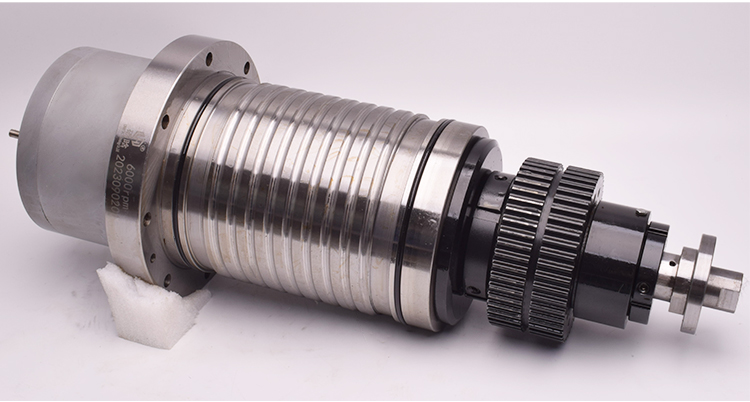

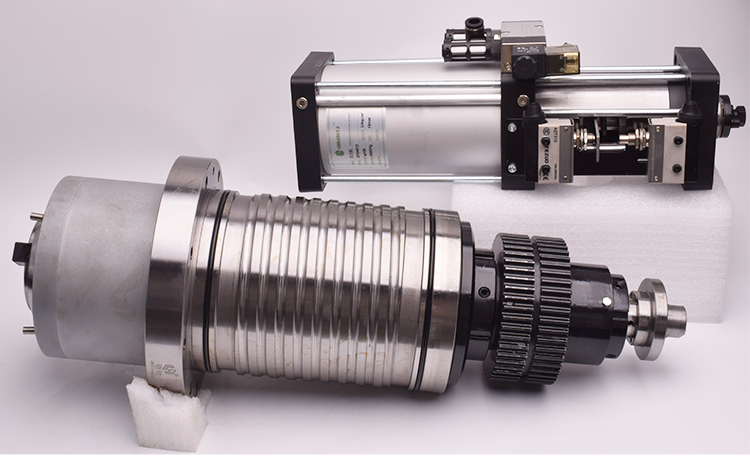

Factory Price 150-BT40-6000rpm milling bt40 spindle set machine tool spindle

Product Paramenters:

Model: BT40

Rated speed: 6000rpm

Diameter: 150mm

Drive: Belt Drive

Cooling type: Water

Voltage: 380V/220V


Collect
  • Paramenters
  • Description
Front-end interface
BT40,with double key
Bearing
2-7012AC+ 2-7010AC.DB
Broach force
792KG
Max Speed
6000RPM
Put out tool force
1900KG
Dynamic balance accuracy
G1
Put out tool distance
6mm
Static accuracy
Taper hole <0.003mm
Lubrication
Grease
Installation
Vertical, spindle front down
Cooling
Self-cooling
Drive
Belt


150-BT40-6000rmp belt spindle . Please feel free to contact us for more models.
Such as BT30 BT40 BT50 and so on.
Support for custom.
It is a very important parts in Machining Center Series, mainly applied for all kinds of high speed CNC machine, suitable for processing of large mould, automobile parts and aerospace parts.
