Product Detail

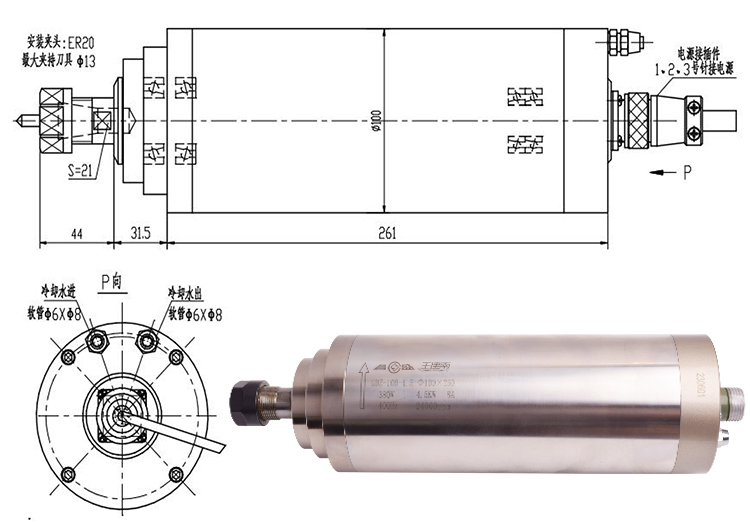

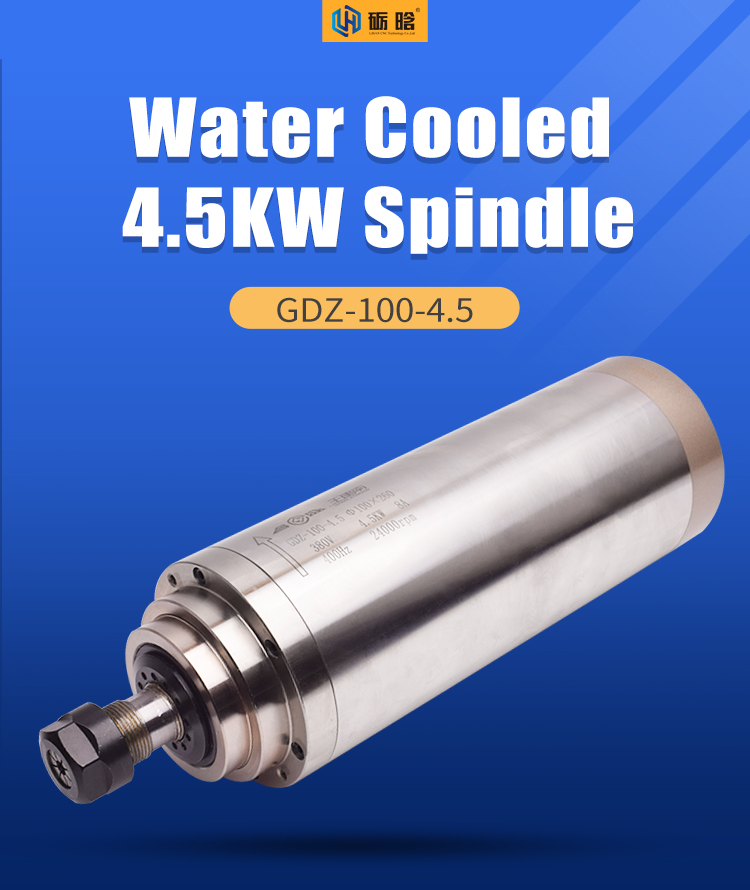

GDZ-100-4.5 spindel 380v 100mm diameter ER20 water cooled 4.5kw spindle for cnc router

Power：4.5kw

Voltage：380V

Connect：ER20

Speed：24000RPM

Frequency：400Hz

Collect

Paramenters
Description

Brand Name	GDZ
Power (kw)	4.5kw
Voltage	220V/380V
Current	8.0A
The maximum speed	24000rpm
Maximum power	400Hz
Cooling type	Water-cooled
Shaft connection	ER20
Weight (KG)	11.6KG

Spindle features:

1) Imported bearings with good quality, long working life. 2) Application: Milling,Engraving,Drilling in all kinds of CNC Router machine. 3) There are water cooling spindle , air cooling spindle and self cooling spindle for your choose. 4) Every spindle motor must be passed polishing process, Improve spindle concentricity to increase motor working life.
